How to solve the problem of iPhone screen not responding?

In today's digital age, iPhone has become an indispensable partner in our lives. Whether it is work communication, leisure and entertainment, or daily travel navigation, it is indispensable. However, when the iPhone Screen suddenly becomes unresponsive, and your fingers click and slide on the screen but nothing happens, you will feel anxious and helpless. This situation not only disrupts our daily rhythm, but may also affect the handling of important matters. Don't worry, the following will introduce a series of effective ways to solve the problem of iPhone screen unresponsiveness, so that you can quickly resume normal use of your phone.

Basic Fixes

Force Restart: The procedure varies by model. For iPhone 8 and later (including iPhone SE 2nd and 3rd generation), quickly press and release the Volume Up button, then quickly press and release the Volume Down button, and finally press and hold the Side button until the Apple logo appears. For iPhone 7 and 7 Plus, press and hold the Side button and Volume Down button at the same time until the Apple logo appears. For iPhone 6s and earlier (including iPhone SE 1st generation), press and hold the Home button and the Side button or Top button until the Apple logo appears.

Clean the screen: A dirty screen can affect touch sensitivity. Use a clean microfiber cloth to wipe the screen to remove dirt and stains.

Remove screen protectors and cases: Defective or ill-fitting iPhone Screen Protectors and cases can affect touch sensitivity. Try removing them to see if the problem is resolved.

Troubleshooting specific app freezes
Force Quit an app: For iPhone X and later, swipe up from the bottom of the screen and hold the center. Then, swipe right or left to find the problematic app, and swipe up on its preview to force quit it. For iPhone 8 and earlier, double-click the Home button, find the app, and swipe up on its preview.

Update or reinstall the app: Check the App Store for an update for the problematic app. If there is no update, try deleting the app and reinstalling it from the App Store.

Advanced solution
Update iOS: Update to the latest iOS version, as new versions often contain bug fixes. Go to Settings -> General -> Software Update. If an update is available, tap Download and Install, then follow the prompts to complete the installation.

Factory reset: As a last resort, this will erase all your data, so back up your data first. Go to Settings -> General -> Transfer or reset iPhone -> Reset -> Erase All Content and Settings.

Precision maintenance:
1 Visual Examination
Exterior Damage: Begin by closely examining the iPhone's exterior. Check for any visible signs of physical damage, such as cracks on the screen, dents on the iPhone Battert Frame, or signs of water ingress around the edges. Cracks in the screen can not only be aesthetically displeasing but may also cause internal damage to the delicate touch - sensing layers. Even a minor crack can disrupt the flow of electrical signals between the touch sensors and the device's logic board.

Connector Visibility: If possible,access the internal components (this requires specialized tools and knowledge, and should be done in a static - free environment). Locate the screen connectors on the logic board. These connectors are usually secured with small clips or screws. Check if they are visibly loose, corroded, or damaged. A loose connector can cause intermittent or complete loss of communication between the screen and the phone's main circuitry.

2. Power-Related Checks
Battery Health: The battery is a crucial power source for all iPhone components, including the screen. Use a Professional Battery Testing Tool to check the battery's health. A failing battery may not be able to supply the consistent voltage required for the screen to function properly. If the battery's capacity has significantly degraded or if there are issues with its voltage, it could lead to screen - related problems. For example, a sudden drop in voltage during normal regulation use might cause the screen to freeze or become unresponsive.

Power Supply to the Screen: Using a Multimeter, measure the voltage at the screen connectors. Compare the measured voltage with the manufacturer's specifications. If the voltage is too low or fluctuating, it indicates a problem with the Power Supply circuit to the screen. This could be due to a damaged power management IC (Integrated Circuit) on the logic board or a short in the trace that supplies power to the screen.

3. Touch Sensor and Display Assembly Diagnostics
Touch Sensor Test
Resistance Test: The touch sensors in the iPhone screen operate based on changes in resistance. Use a precision ohmmeter to measure the resistance of the touch sensor layer. Different areas of the touch sensor should have specific resistance values. If there is a significant deviation from the expected value, it indicates a problem with the touch sensor. For example, a high resistance area on the touch sensor may cause that part of the screen to not respond to touch input.

Capacitance Test: iPhone touch screens are capacitive, which means they can detect the electrical charge of a finger. A capacitance meter can be used to test the capacitance of the touch sensor. Abnormal capacitance values ​​may indicate problems such as damage to the touch sensor due to electrostatic discharge or physical pressure.

4. Display Panel Check

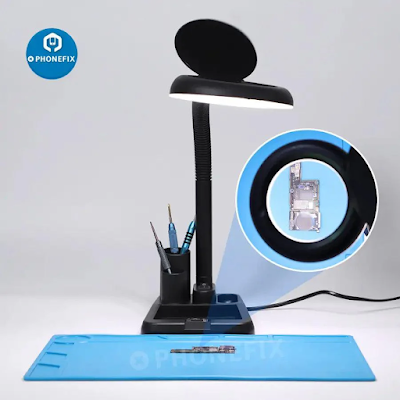

Backlight and Pixel Check: Check the screen's backlight. If the backlight is dim or not working at all, there may be a problem with the backlight driver IC or a damaged backlight unit. Use a Magnifying Glass to check individual pixels. A dead pixel (a pixel that is always black) or a dead pixel (a pixel that is always a single color) may indicate that the display panel itself is damaged. In some cases, a group of dead pixels or dead pixels may also be related to problems with the data lines that connect the display panel to the touch sensor and the logic board.

5. Logic Board Repair
Circuit Trace Repair
Microsoldering: If an initial inspection reveals problems with the circuit traces on the logic board that connect to the screen, microsoldering techniques may be required. Circuit trace damage can be caused by physical shock, overheating, or manufacturing defects. Using a High-precision Soldering Iron and fine-gauge solder wire, carefully repair broken or damaged traces. This requires a steady hand and a Microscope to ensure accurate soldering, as the circuit traces on the iPhone logic board are very small.

IC Replacement: If a specific integrated circuit (IC) on the logic board is suspected of causing the unresponsive screen issue, such as the touch controller IC or display driver IC, the IC may need to be replaced. This involves desoldering the old IC using a hot air rework station, cleaning the pads, and then soldering a new compatible IC in its place. Precise temperature control and proper soldering techniques are critical during this process to avoid damaging the delicate logic board and other components.

6. Software-Hardware Interaction
Firmware and Driver Check: Even from a hardware-centric precision repair perspective, software-hardware interaction cannot be ignored. Make sure the iPhone's firmware is up to date. Sometimes, outdated firmware versions can have bugs that cause screen-related issues. Additionally, check the device's touchscreen and display drivers. Although iOS manages these drivers automatically, in rare cases, driver-related issues may occur. If possible, use Apple-provided diagnostic software or third-party professional repair tools to check for any software-related errors that may affect the screen's functionality.

Hopefully, the above analysis of the iPhone screen unresponsiveness problem and solutions from the perspective of precision repair can effectively help you deal with device failures and restore your iPhone to a smooth state of use. If you need professional and precision repair tools during the repair process, Phonefix is ​​your right choice. We have a wide variety of High-quality Precision Repair Tools, from high-precision screwdriver sets to professional welding equipment to advanced testing instruments, to help you complete iPhone repair work efficiently and accurately.
