Observing Circuit Board Under Trinocular Stereo Microscope

The steps for using a trinocular microscope

Step 1: Install 38MP HDMI Camera to the power supply. Plug the microscope’s power cord into an outlet.

Step 2: Switch on your microscope’s 144 LED Light and then adjust the diaphragm to the largest hole diameter, allowing the greatest amount of light through.

Step 3: Move the stage down to its lowest position and you will have a wider field of view at low power. It is easiest to scan a slide at a low setting. Move the slide until the specimen is under the Objective Lens.

Step 4:  Adjust the large coarse focus knob until the specimen is in focus. Slowly move the slide to center the specimen under the Objective Lens.

Step 5: Then adjust the diaphragm to get the best lighting. Start with the most light and gradually lessen it until the specimen image has clear, sharp contrast.

Step 6:  Get an overview of the specimen though Microscope Eyepieces by scanning the slide (right to left and top to bottom) at low side. Then center the part of the specimen you want to view at higher power.

Replacing with the 40x objective for 400x magnification will enable you to see all of the specimen detail that’s necessary for repair work.

You can also buy other Microscope or Microscope parts on Phonefix shop.

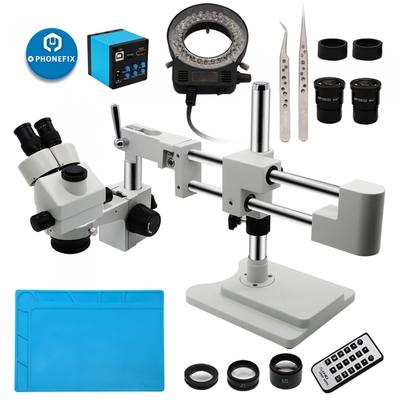

7-45X Double-Arm Trinocular Microscope

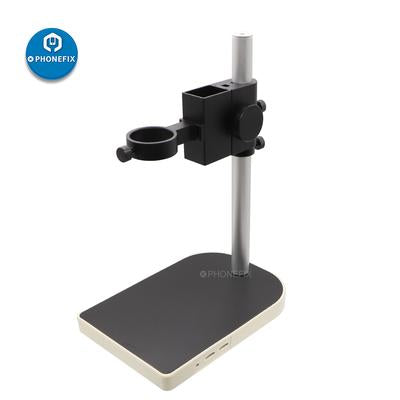

Industry Video Microscope Bracket Holder

A trinocular microscope has two eyepieces like a binocular microscope and an additional third eyetube for connecting a microscope camera. They are therefore a binocular with a moving prism assembly in which light is either directed to the binocular assembly of the microscope or to the camera.

One of the biggest advantages of Trinocular Microscope is its versatility. For instance, for brightfield photographic purposes, the 20% visual- 80% photo system would be the ideal choice.
